Practical variations

  • If points on the Scatter Diagram coincide with other points, the fact that one point is actually two or more may be highlighted by emboldening them or by using concentric circles.
  • If measurements are difficult to obtain, as few as 30 measurement pairs can be used.
  • Use a Correlation Table when multiple coincidental points are measured, typically when there are a limited number of possible positions. This is effectively a cross between a Scatter Diagram and a Check Sheet, where each x-y position is represented by a box in which multiple points can be indicated.



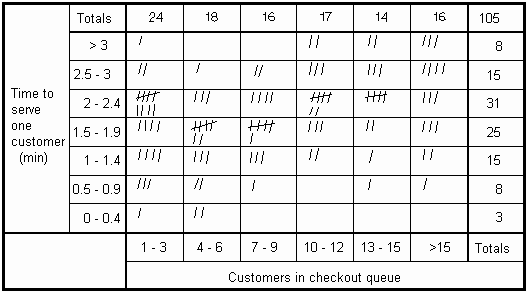

Fig. 1. Correlation Table


  • Separate measurement sets may be shown on the same Scatter Diagram, which may be distinguished from one another by using different shaped markers for each set of points. A typical use is where one variable is being changed, for example to show measurements of material from several different suppliers.
  • Where non-linear correlation appears, rough estimates may be made using them by dividing them into approximately linear sections and calculating the regression line and standard error as above.
